Morphodynamic assessment of side channel systems using a simple one-dimensional bifurcation model and a comparison with aerial images

Highlights

We assess the conditions under which side channels generally aggrade or degrade, and estimate the characteristic time scales of the associated morphological change. The main result is a set of stability diagrams with key variables that can be used to assess the development of a side channel system. This will aid the future design and maintenance of side channel systems.

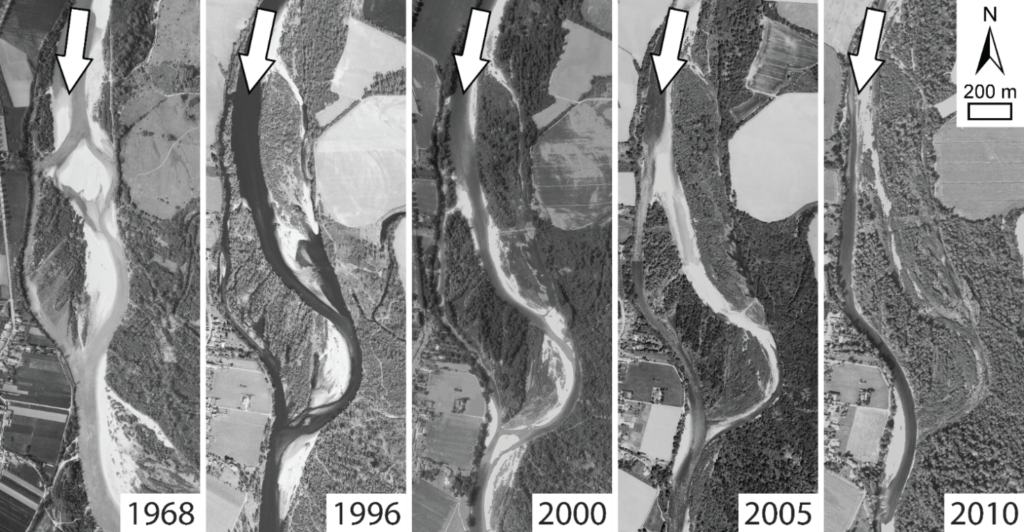

Morphological changes in a two channel system in the River Ain (France) near the village Mollon. (Source: IGN-France, Google Earth)

Abstract

Side channel construction is a common intervention applied to increase a river’s conveyance capacity and to increase its ecological value. Past modelling efforts suggest two mechanisms affecting the morphodynamic change of a side channel: (1) a difference in channel slope between the side channel and the main channel and (2) bend flow just upstream of the bifurcation. The objective of this paper was to assess the conditions under which side channels generally aggrade or degrade and to assess the characteristic timescales of the associated morphological change. We use a one‐dimensional bifurcation model to predict the development of side channel systems and the characteristic timescale for a wide range of conditions. We then compare these results to multitemporal aerial images of four side channel systems. We consider the following mechanisms at the bifurcation to be important for side channel development: sediment diversion due to the bifurcation angle, sediment diversion due to the transverse bed slope, partitioning of suspended load, mixed sediment processes such as sorting at the bifurcation, bank erosion, deposition due to vegetation, and floodplain sedimentation. There are limitations to using a one‐dimensional numerical model as it can only account for these mechanisms in a parametrized manner, but the model reproduces general behaviour of the natural side channels until floodplain‐forming processes become important. The main result is a set of stability diagrams with key model parameters that can be used to assess the development of a side channel system and the associated timescale, which will aid in the future design and maintenance of side channel systems.

Distributed under the Creative Commons Attribution License (CC BY).

Resources



Journal publication

van Denderen, R. P., Schielen, R. M. J., Blom, A., Hulscher, S. J. M. H., & Kleinhans, M. G. (2017). Morphodynamic assessment of side channel systems using a simple one-dimensional bifurcation model and a comparison with aerial images. DOI: 10.1002/esp.4267.

Ask questions and/or explore related research

Further explore this publication in   to ask questions and to identify related research. Send otherwise a message to the authors via this knowledge-base.



Replication dataset

Source code and results of the 1D bifurcation model and series of aerial image series that are used in the publication.



Search categories

Management phase: Evaluation & Adjustment | Intervention Planning |

Management goals: Maintenance Efficiency | Morphological understanding |

Temporal scale: Midterm evolution (10-50 years) |

Data-collection methods: Numerical modeling | Remote sensing |

Related storylines

How do side channels develop?

Pepijn van Denderen

We assess several side channel systems and propose a method to estimate their development.
