B1b) Morphological evaluation of river interventions

Start: 12/2019
End: 02/2021
Status: Active

Contact details

Pepijn van Denderen

University of Twente

This project is funded by TKI Deltatechnologie UTW01

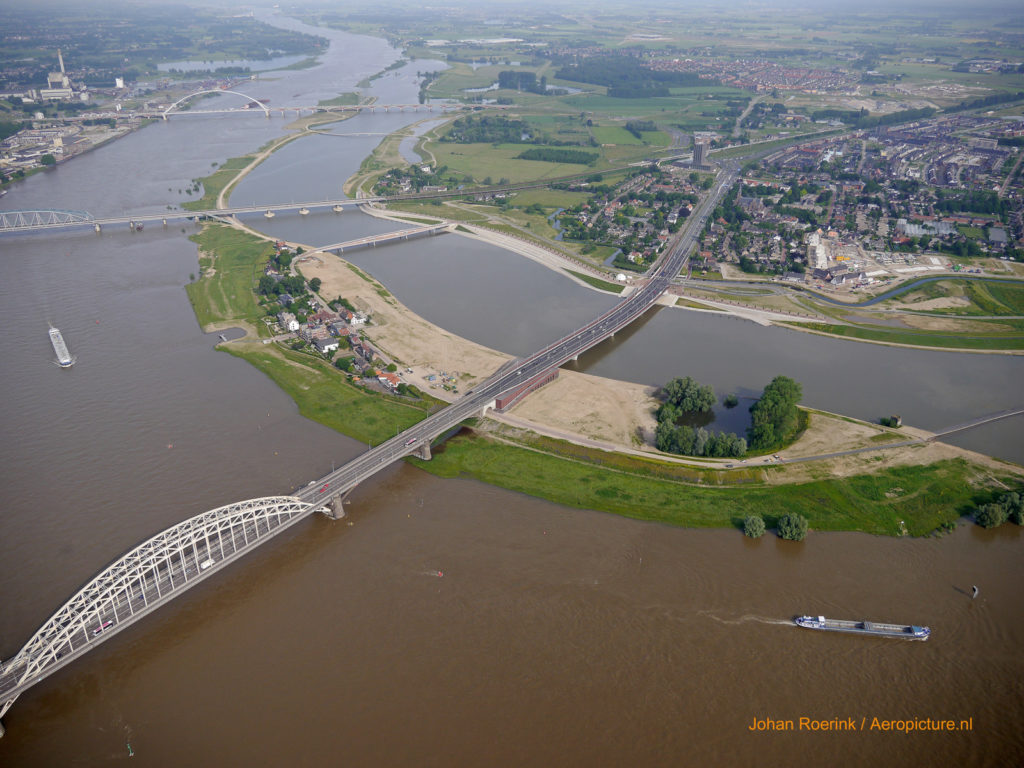

The side channel at Nijmegen-Lent in the river Waal

Project output

Insights into the morphological changes in rivers with and without river interventions.

Challenge

The management of rivers requires the consideration of river functions such as flood conveyance, ecology, and navigation. River interventions, such as side channels and longitudinal dams, are constructed to benefit mainly one of these functions and should have minimal effects on the other functions of the river. For example, side channels are constructed to increase the ecological value of the river but side channels generally cause aggradation in the navigation channel and thereby affect the navigational function of the river. Better insight into the bed level changes that result from such interventions can help to improve their design such that the effect on conflicting river functions is mitigated.

Key goals: Fundamental understanding Integrated management

Innovative components

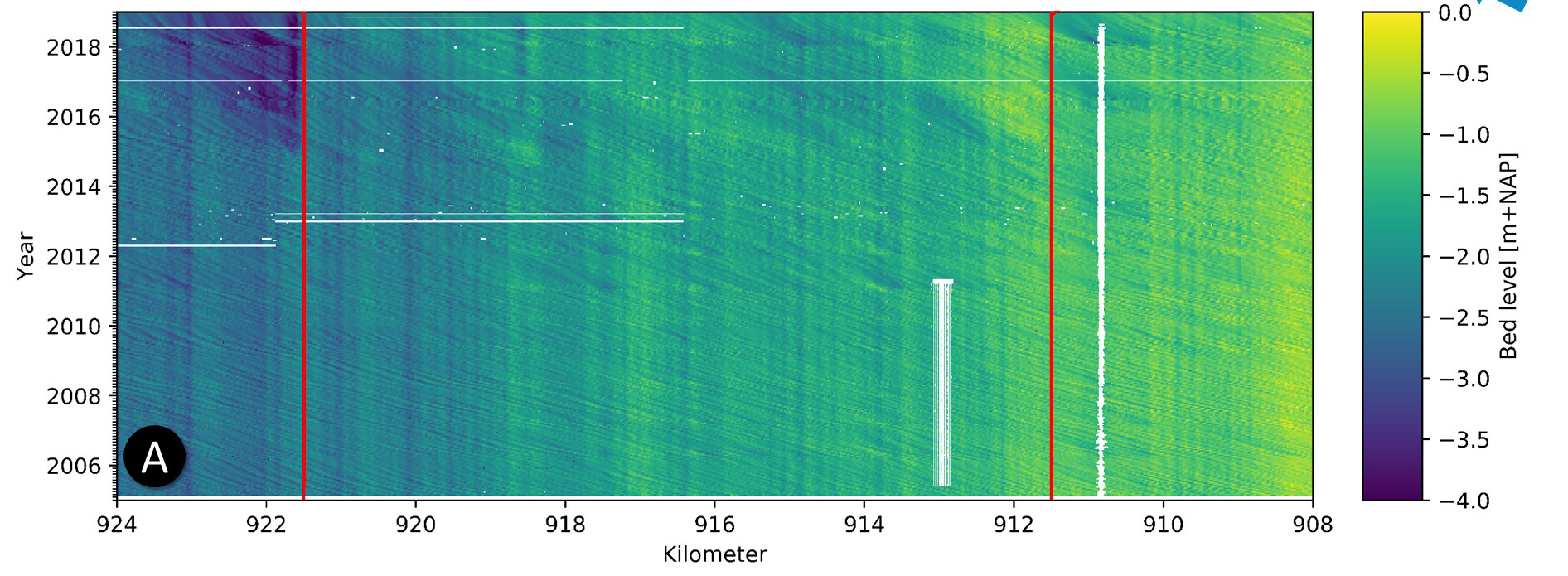

Several analytical and numerical models exist that can be used to estimate the river bed level changes as a result of interventions (top left side of the figure). However, field measurements of such development are rare. We use a large dataset to estimate the development of several types of interventions and characterize their bed level variation (top right side of the figure). We apply a method that can distinguish bed level changes that occur at different spatial scales. This allows us to identify the contribution of the interventions to the local bed changes. Second, we study the morphological variation of the river without interventions. This variation occurs as a function of the river’s geometry in combination with the discharge. Combining the morphological effect of the interventions with the morphological variation of the river can result in a more optimized design of river interventions. For example, a side channel locally increases the equilibrium bed level and local narrowing of the floodplain reduces the equilibrium bed level (bottom of the figure). If the side channel is constructed at the correct location,  the bed level changes counteract each other.

For whom and where?

  • Managers who need to design new river interventions and need to gain insight into the morphological behavior of their river
  • Practitioners that want to optimize the design of river interventions.

Data-collection methods: Field survey measurements Historical approach

Temporal scale: 1-10years

Application development and findings

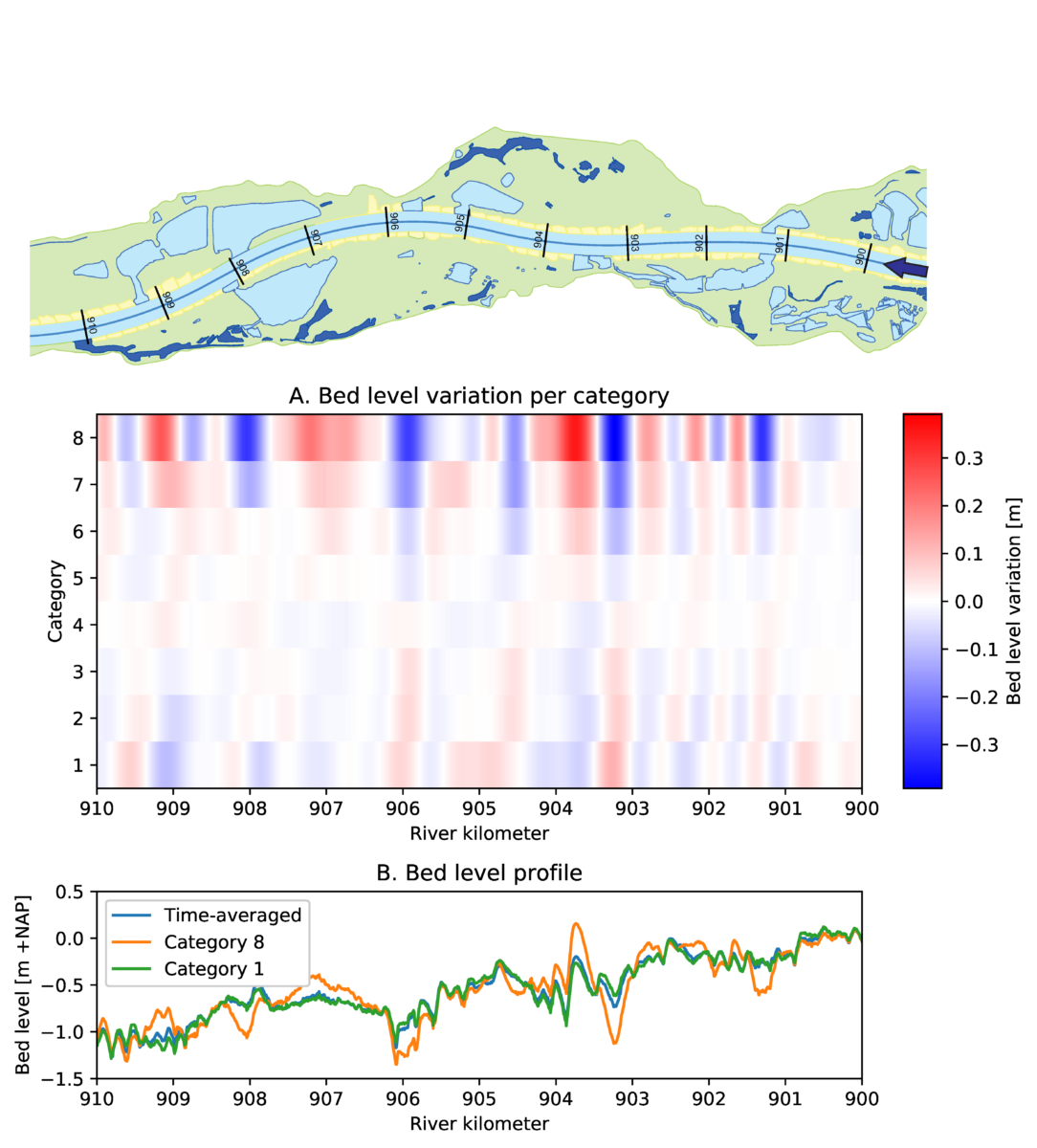

We derive several maps that indicate the bed level changes along the river as a function of the discharge. These maps can be used to characterize the bed level changes in the river and to evaluate suitable interventions. The location of the intervention can be chosen such that the resulting bed level changes are enhanced or mitigated. The proposed method is therefore relevant for both river interventions that should have minimal impact on the navigational function river and river interventions that need to reduce the degradation rate of a river.

Based on our results we propose changes to the current way of planning and designing river interventions. We apply our method to the Rhine branches, but it is generally applicable to other rivers. Taking into the seasonality of the bed level support planning and designing river interventions in multi-functional rivers.

Status for day-to-day practice

We developed a method to extract bed level changes that occur at different length scales. Using this method we can relate bed level changes with their causes. We are currently analyzing the bed level changes that occur at a range of discharges.

Spatial scale: Channel Reach

Key locations: Netherlands (NL) Rhine River (NL)

Next Steps

We link the observed bed level changes with bottlenecks in the river and give suggestions for new locations of river interventions.

Last updated: 15/05/2020

Explore the contact details to get to know more about the researchers, the supervisory team and the organizations that contribute to this project.

Contributing researchers

Pepijn van Denderen

University of Twente

Supervisory team

dr. ir. Denie Augustijn

University of Twente

User group

As soon as available, explore the storyline to get to know more about the main methods or prototype tools that were developed within this project.

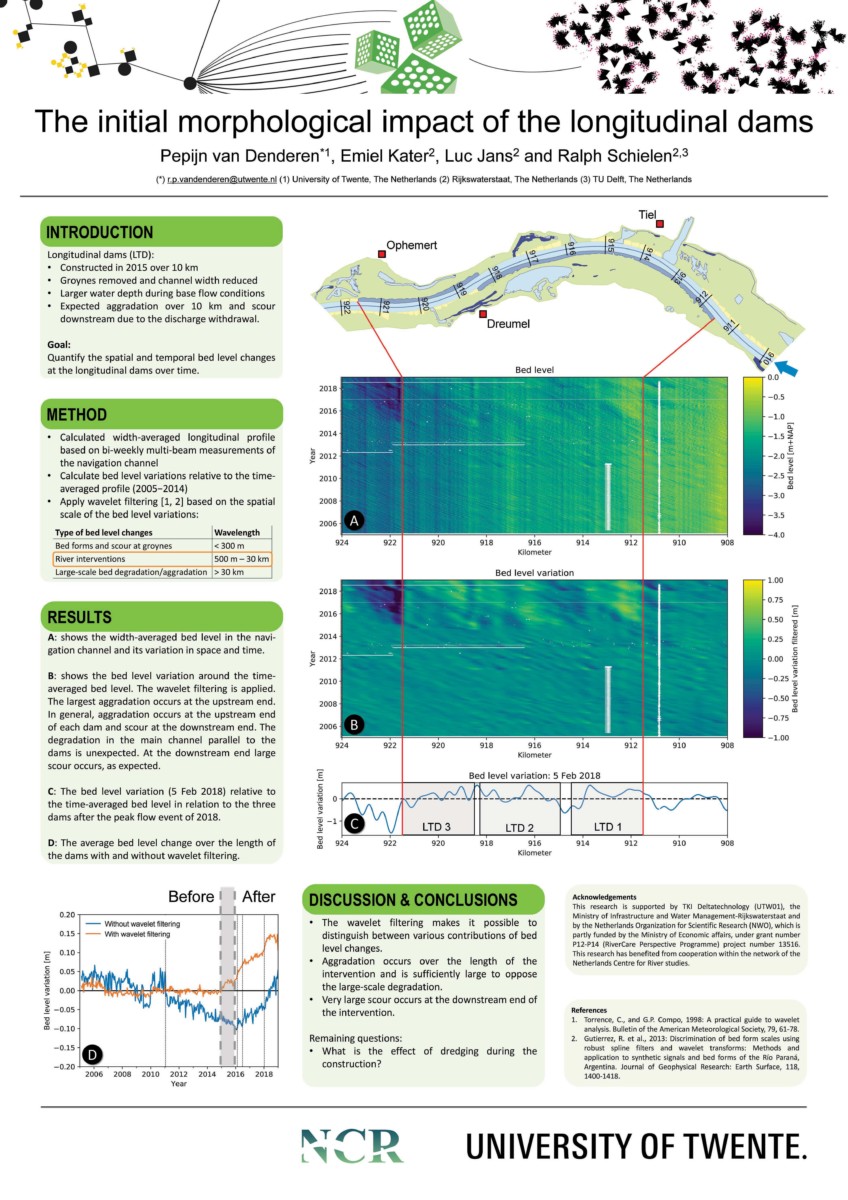

Changes in the equilibrium river profile: The morphological impact of interventions

We propose a new method to study bed level changes in a river

Pepijn van Denderen

University of Twente

View storyline

Explore the output details for available publications to get a glance of the innovative components and implications to practice as well as the links to supporting datasets.

Project outputs

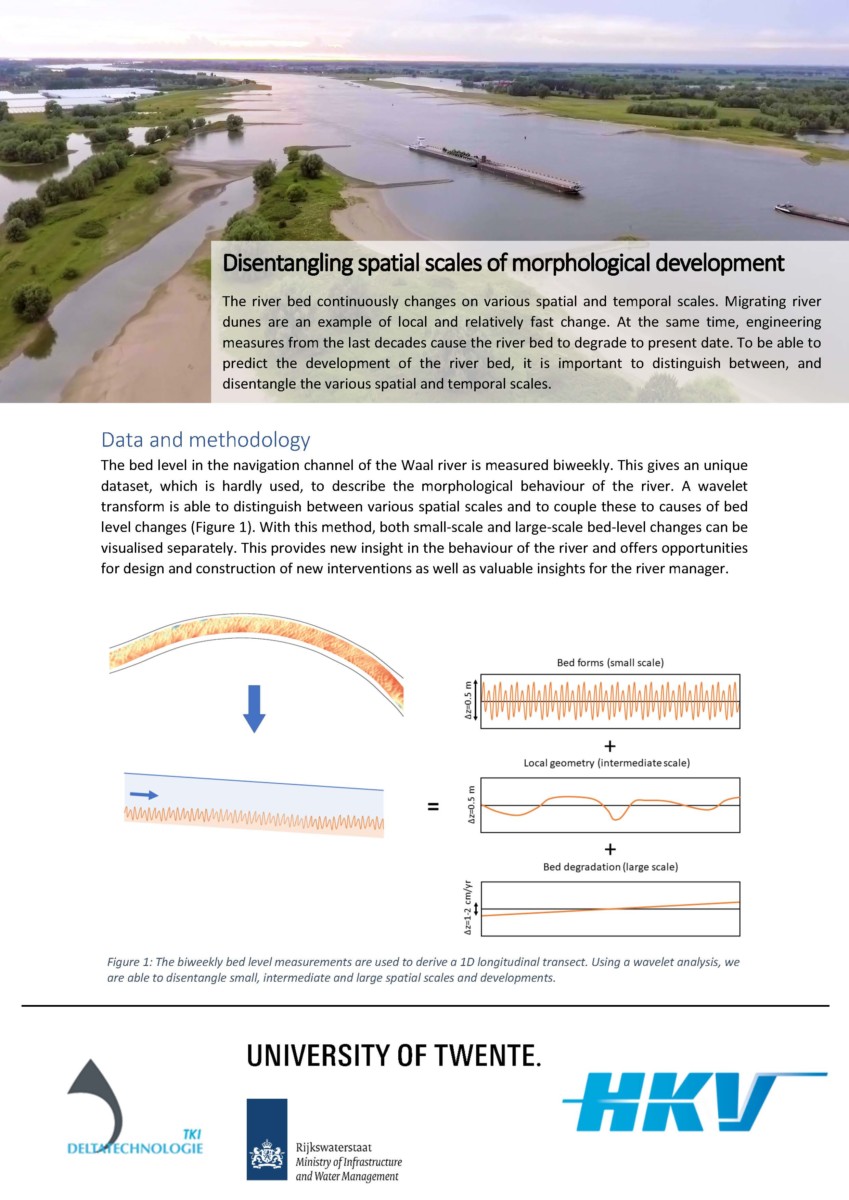

Disentangling morphological scales

A flyer with the main results on the various morphological scales of bed level changes in a river.

06/07/2020 by Pepijn van Denderen et al.

View details View publication

Morphological evaluation of river interventions: progress reports

The management of multifunctional rivers requires the consideration of river functions such as flood conveyance, ecology, and navigation. River interventions are constructed to benefit these functions but these interventions should have minimal effects on the other functions of the river. Better insight into the morphological changes that result from such interventions can aid to optimize their design and improve the sediment management of the river.

11/02/2020 by Pepijn van Denderen

View details View publication

Take a look to the dissemination efforts and application experiences which are available in the news items and blogs.

News

How much sand does a secondary channel yield?

10/03/2020 by Pepijn van Denderen

The construction of a secondary channel creates an additional habitat for life in the river. But such a secondary channel also causes the flow...

View details
