A1) Longitudinal training dams

Start: 03/2015
End: 03/2019
Status: Active

Contact details

Timo de Ruijsscher

Wageningen University & Research

Aerial photograph of the intake of a longitudinal training dam in the Dutch Waal River which divides the river into a side and main channel. (Source: Rijkswaterstaat).

Project output

Insights on the erosion and deposition effects of the longitudinal dams and rules of thumb for their design.

Challenge

Due to climate change, more extreme river conditions will occur in the Netherlands but also abroad due to long dry periods and extreme discharge peaks. To mitigate these effects, longitudinal training dams are implemented in the inner bend of a 10 km river stretch in the Waal River. These dams aim at increasing the flow depth in the fairway or navigation channel during periods of low water levels and to decrease water levels during floods. Despite the fact that different kinds of longitudinal dam-like structures can be found in multiple rivers internationally (e.g. the Loire River near Chatillon sur Loire in France and the Main River near Karlstadt am Main in Germany), there is not yet in-depth knowledge on the way these structures regulate water and sediment flows. Erosion and deposition patterns in both fairway and side channel are important for river managers, as they might increase the need for dredging the fairway or limit the suitability of the side channel to be used by recreational boaters.

Key goals: Fundamental understanding Innovative monitoring

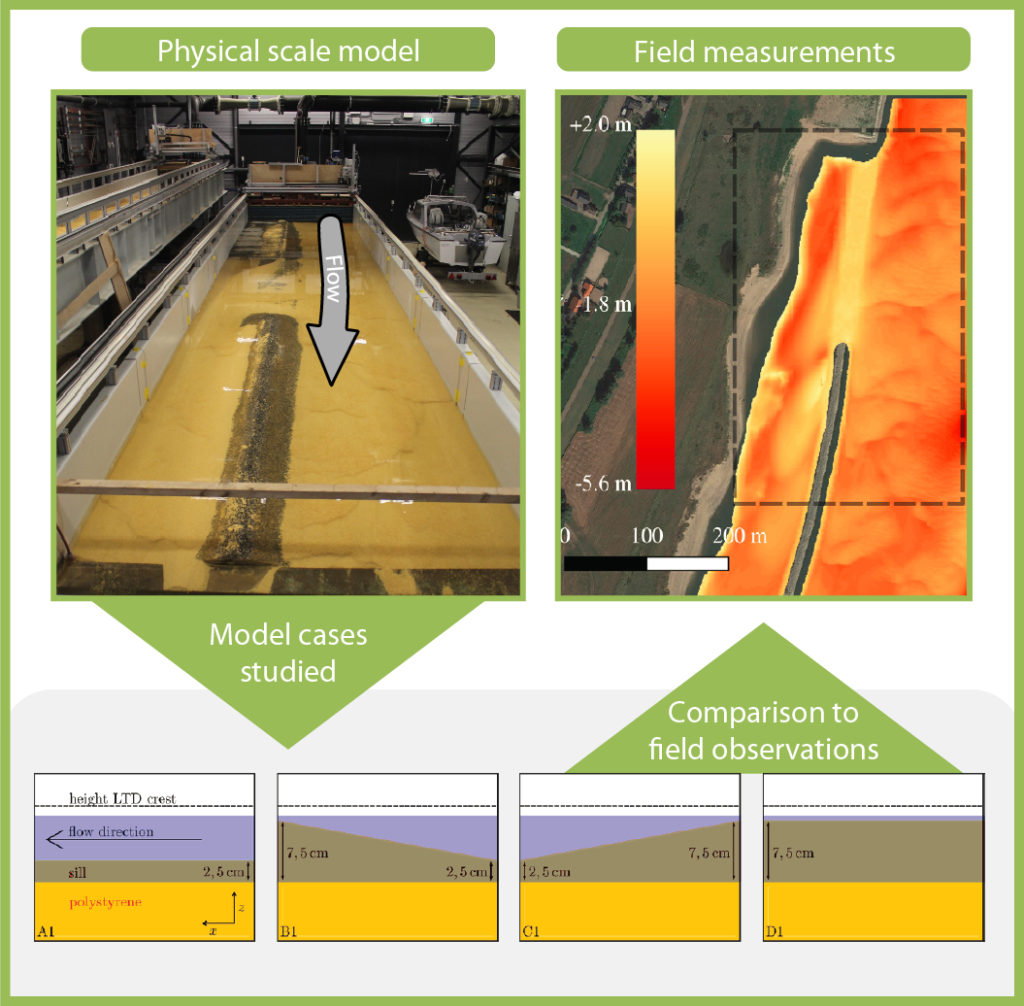

Physical scale model of the upstream section of a longitudinal dam (the arrow indicates the flow direction). Four inlet geometries (in red) and field measurements of the bed in the Waal at the entrance of the side channel (Source: de Ruijsscher et al. 2018 and Rijkswaterstaat)

Innovative components

A scale model of the most upstream part of a longitudinal dam was built in a 2.5-metre-wide flume in the hydraulics laboratory in Wageningen. We used such model to get insights on the flow dynamics and its effect on the local patterns of the river bed due to the side channel inlet. To mimic the river bed evolution realistically, polystyrene particles are used as surrogate sediment. To measure the erosion and sediment changes accurately, a line laser scanner combined with a 3D-camera was built and tested. To optimize the longitudinal dam design, we focused in the local effect of the sill geometry at the side channel inlet. Therefore, we carried experiments with four sill geometries: A) uniform low sill, B) downstream increasing, C) downstream decreasing, and D) uniform high sill. An existing dataset of bed level measurements in the Waal River is analyzed to study the effect of the longitudinal dam construction on the river bed dynamics. We are comparing the resulting bed data of the lab measurements with the field dataset.

For whom and where?

The general results can be used by river managers on the river reach scale. Laboratory methods like the line laser scanner can be used in hydraulic laboratory studies with the movable bed. Advisors studying the classical situation of flow and bedload transport over an oblique weir can also benefit from the results for this specific setting.

Data-collection methods: Field survey measurements Physical and laboratory experiments Remote sensing

Temporal scale: Seasonal measurements

Application and findings

The line laser scanner allows for accurate monitoring of the bed evolution in laboratory experiments with moving bed, even under flowing water conditions. This technique is later used in a scale model study on the local hydraulic and morphological effect of LTD inlet design. The main result is that the side channel discharge is mainly determined by the cross-sectional area over the sill, and that a downstream decreasing sill height results in a morphologically dynamic system. Whether this is feasible or not depends on the needs of different purposes of the side channel, e.g. ecology  and recreational boating.

From morphological analysis in the Waal River, it turns out that bed forms of different length scales co-exist: dunes and forced bars. In general, dunes cannot be treated separately without taking into account the bars, because both dune height and length correlate with the location on the bar.



Status for day-to-day practice

This section will be available as soon as possible.

Location along the 10 km stretch of the river Waal (between Tiel and Ophelmert) in which the longitudinal dam pilot was implemented.

Spatial scale: River section

Key locations: Waal River (NL)

Next steps

This section will be available as soon as possible.

Last modified: 15/03/2019

Explore the contact details to get to know more about the researchers, the supervisory team and the organizations that contribute to this project.

Main researcher

Timo de Ruijsscher

Wageningen University & Research

Supervisory team

dr. ir. Ton Hoitink

Wageningen University & Research

dr. ir. Bart Vermeulen

University of Twente

dr. ir. Erik Mosselman

Deltares

Prof. dr. ir. Wim Uijttewaal

Delft University of Technology

Contributing partners

As soon as available, explore the storyline to get to know more about the main methods or prototype tools that were developed within this project.

Explore the output details for available publications to get a glance of the innovative components and implications to practice as well as the links to supporting datasets.

Project outputs

Morphological patterns at the intake of a side channel over an oblique sill

Qualitative comparison of the river bed dynamics in the side channel of the longitudinal dam and the flat bed conditions in the scale model at low water level.

05/09/2018 by Timo de Ruijsscher et al.

View details View publication

Contains: Publication open access

Application of a line laser scanner for bed form tracking in a laboratory flume

A new measurement method for continuous detection of bed forms in movable bed laboratory experiments is presented and tested.

23/03/2018 by Timo de Ruijsscher et al.

View details View publication

Contains: Dataset access Model or tool access Publication open access
