A2) Ecology of the training dams

Start: 09/2014
End: 09/2018
Status: Active

Contact details

Frank Collas

Radboud University Nijmegen

Download here the summary poster and the PhD thesis related to this project.

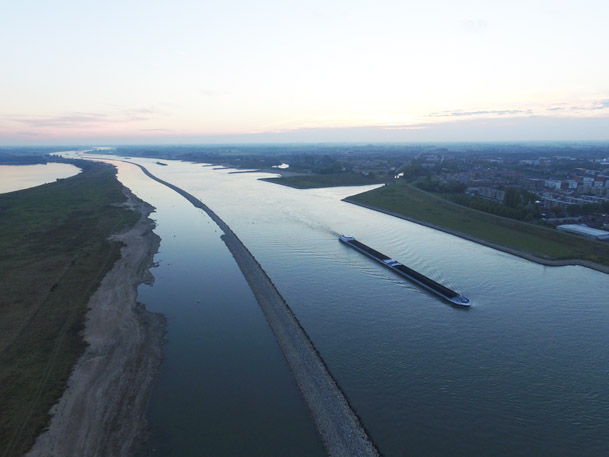

The constructed longitudinal training dam in the river Waal near the village of Tiel (Source: F.C Collas)

Project output

Assessment of the ecological value of novel river training measures and a tool to design restoration measures based on habitat requirements of fish, macroinvertebrates and aquatic macrophytes.


Freshwater ecosystems are among the most endangered ecosystems in the world. Especially lowland rivers have been substantially modified to increase flood safety and to facilitate commercial navigation, resulting in low biodiversity and dominance of invasive alien species. To mitigate navigation-induced disturbance and to improve discharge capacity, longitudinal training dams (LTDs) were built in the river Waal in the Netherlands. LTDs are river training structures aligned parallel to the river shore (see figure). Thereby, these dams protect the river banks from navigation-induced impacts and possibly allow the development of sheltered lotic habitats and gentle slopes. Knowledge on the relation between multiple physical factors and habitat requirements of riverine species is required to evaluate and optimize the design of LTDs and other future river restoration measures.

Key goals: Innovative monitoring Integrated management

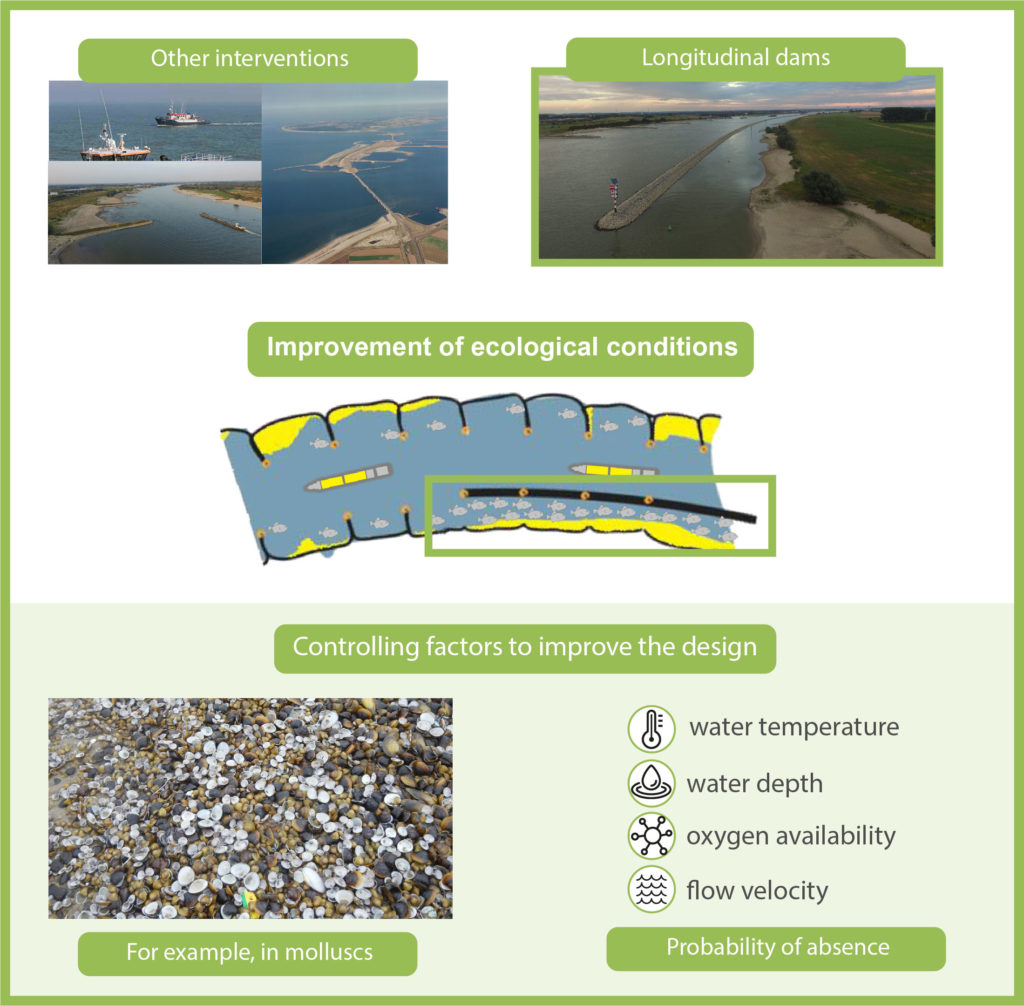

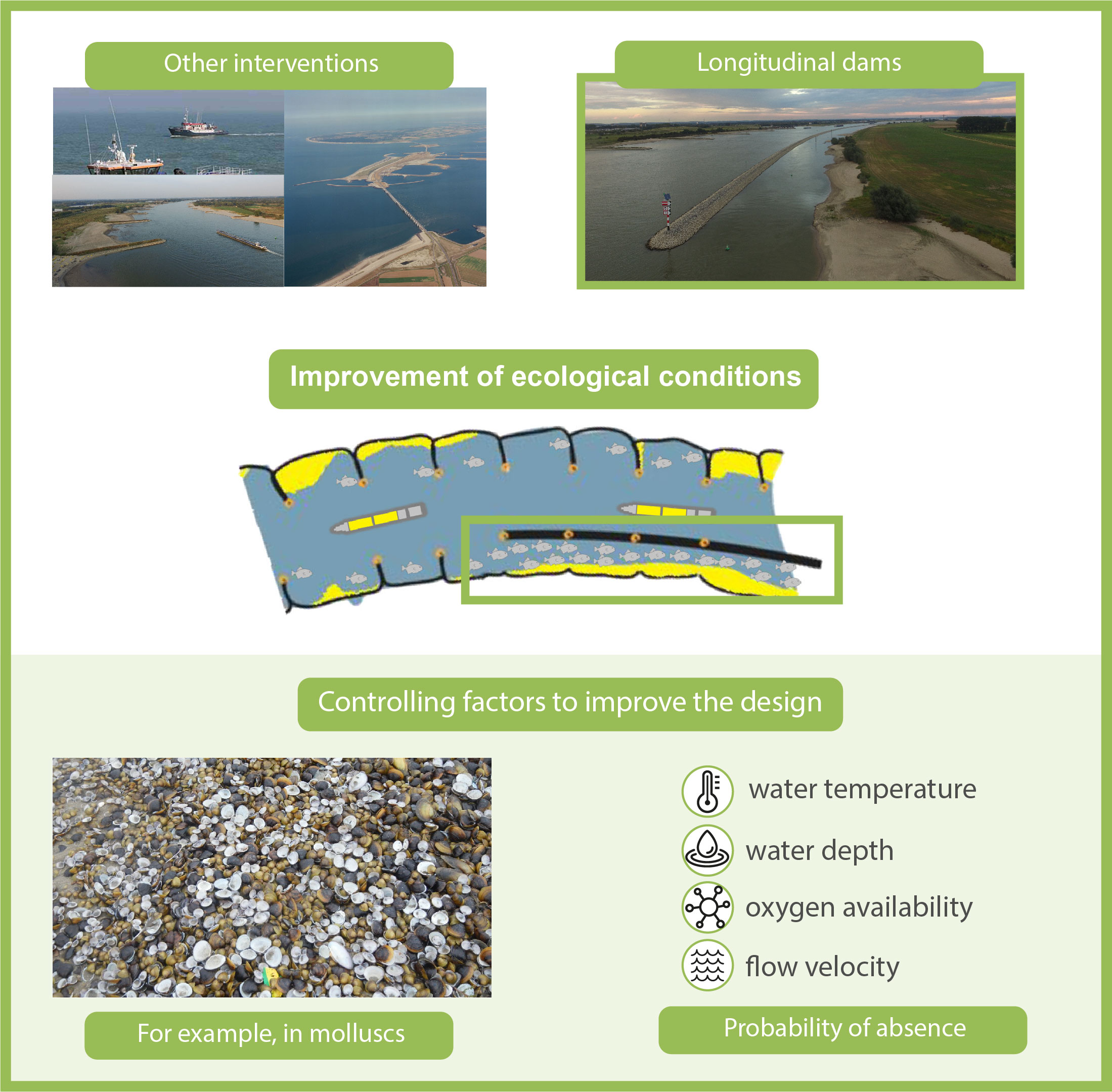

Overview of our approach to get insights and support the ecological design of river training interventions.

Innovative components

River restoration measures are often built without a detailed assessment of potential ecological effects. By combining field observations of riverine species with local conditions ecological models were developed that enable such a detailed assessment. Further innovation has been achieved by using state of the art abiotic measuring techniques (unmanned aerial vehicle, side scan sonar) to measure abiotic conditions in restoration measures. For the evaluation of the ecological effect of the build longitudinal training dams (LTDs) in the river Waal a similar approach has been applied. Innovative abiotic measurements were performed regarding water dynamics, water level fluctuation, flow velocity and underwater sound levels. The used method was found to accurately assess impacts of navigation on abiotic conditions in the littoral zone of the river Rhine. Abiotic conditions in the shore channel of the LTD were found to improve compared to traditional groyne fields. Subsequently, fish and macroinvertebrate monitoring was performed with traditional techniques combined with the previously mentioned method to determine abiotic conditions during sampling. Through combining species occurrence with simultaneous abiotic conditions measurements insights are gained on habitat preferences of riverine species.

For whom and where?

  • River managers that want to optimize the ecological potential of river restoration measures.
  • River restoration projects across Europe that are interested in constructing LTDs or other river restoration measures.

Data-collection methods: Field survey measurements Physical and laboratory experiments Remote sensing Systematic review

Temporal scale: Monthly series Seasonal measurements Yearly measurements

Application development and findings

  • The constructed longitudinal training dams (LTDs) reduce the impacts of navigation on abiotic conditions in the littoral zone of the river Waal.
  • The stability of dynamics is increased in the shore channel behind the LTD.
  • As a result juvenile fish densities increased two to threefold compared to nearby reference locations.
  • Macoinvertebrate densities also increased in the shore channel behind the LTD.
  • Rare and endangered species are more abundant (e.g. River Lamprey, River clubtail, native unionid mussels).
  • Based on known occurrences of riverine freshwater species habitat requirements have been assessed.
  • A multitude of ecological models (species sensitivity distributions, SSDs) has been developed.

SSDs are a valuable tool for improving the design and monitoring of riverine restoration measures.

Status for day-to-day practice

Consultants and river managers need to consider mitigation of navigation effects in river restoration measures. Additionally, SSDs are an important tool to improve the design of river restoration measures.

Location along the 10 km stretch of the river Waal (between Tiel and Ophelmert) in which the longitudinal dam pilot was implemented.

Spatial scale: River section

Key locations: Rhine River (NL) Waal River (NL)

Next steps

The coming years additional monitoring will be performed near the LTD and new technologies will be applied to spatially measure abiotic conditions as an input for the SSD models.

Last updated: 10/02/2020
